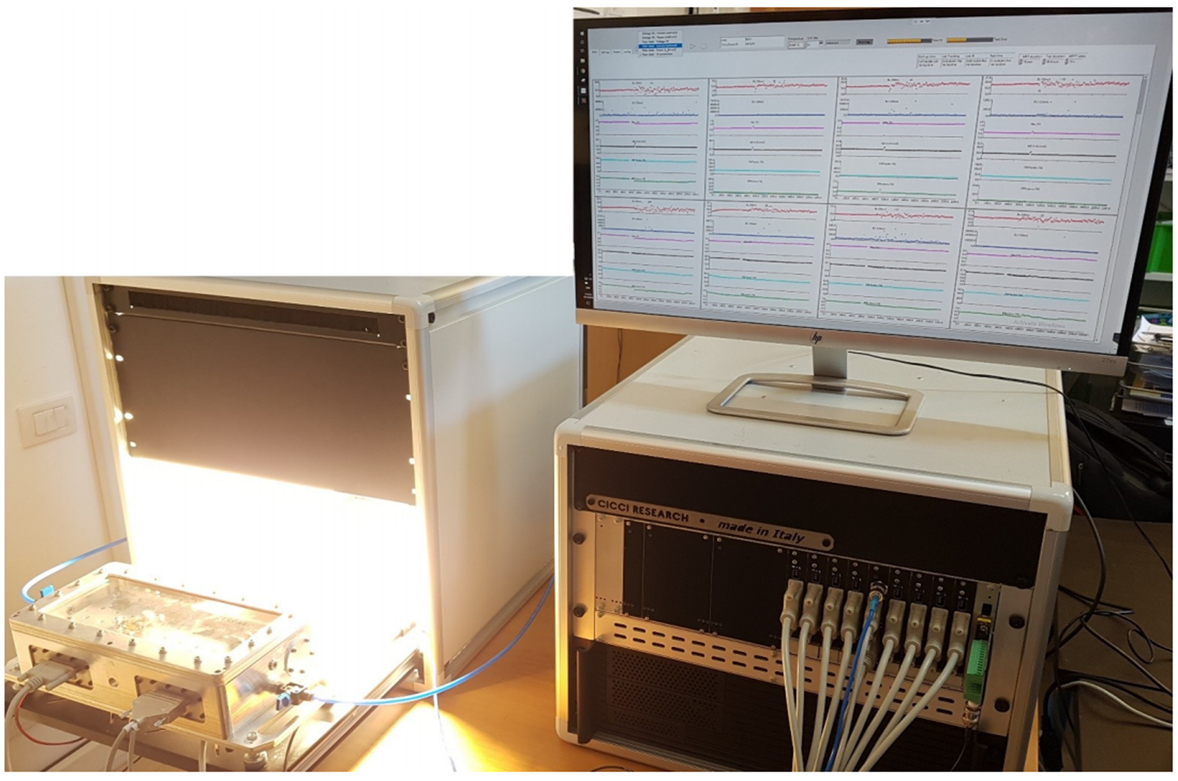

Arkeo Multichannel
Arkeo Multichannel
– 32 (64) independent Source Meter Units (not multiplexed!)
– ±10V @ 250 mA (±20 V with two SMUs connected in series)
– 250kHz of SMU Bandwidth for transient tests
– Proportional-Integral Closed loop intensity regulation for best long-term stress tests
– Temperature control system for general stage or chamber unit
– Programmable small or large area LED based illumination
Many device stability testing
Hardware
– ±10V @ 250 mA (±20 V with two SMUs connected in series)
– 250kHz of SMU Bandwidth for transient tests
– Proportional-Integral Closed loop intensity regulation for best long-term stress tests
– Temperature control system for general stage or chamber unit
– Programmable small or large area LED based illumination

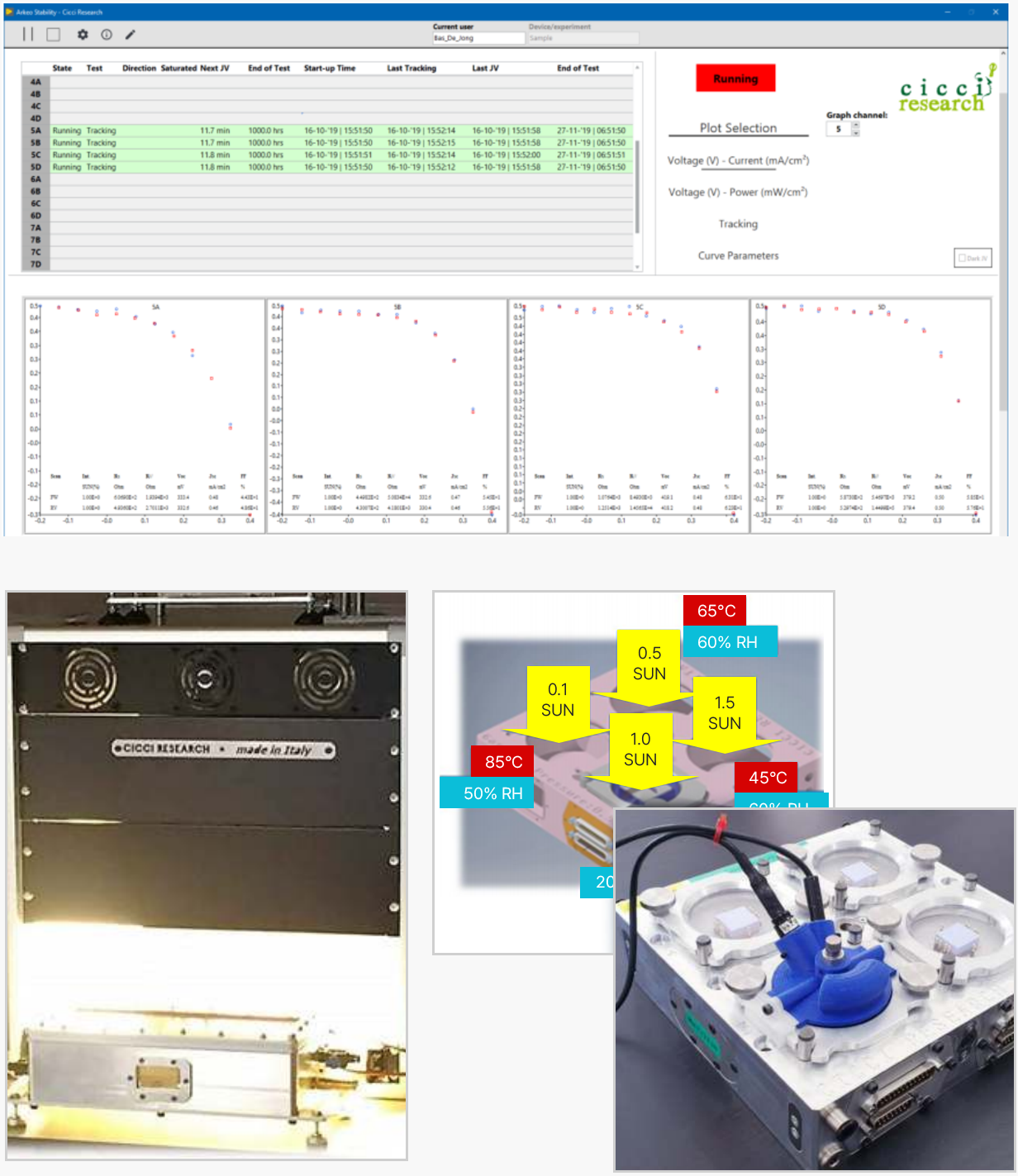

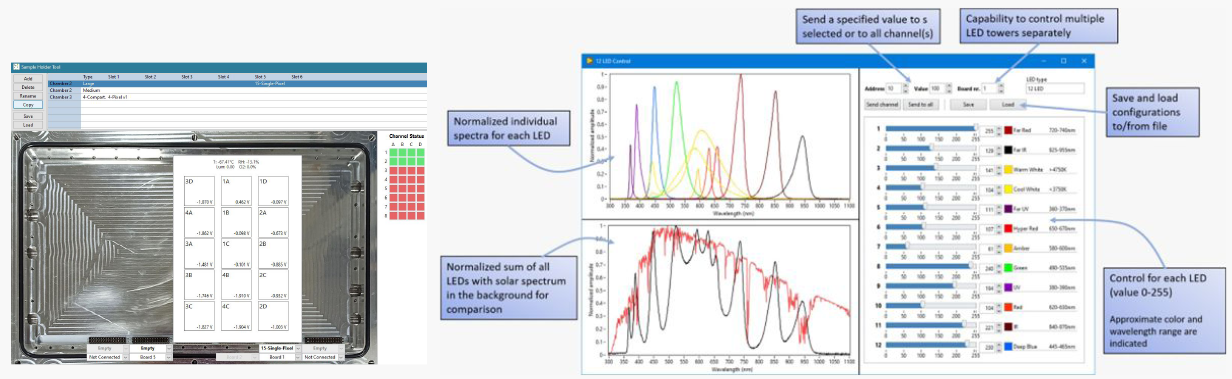

Software
– Simple easy to learn user interface

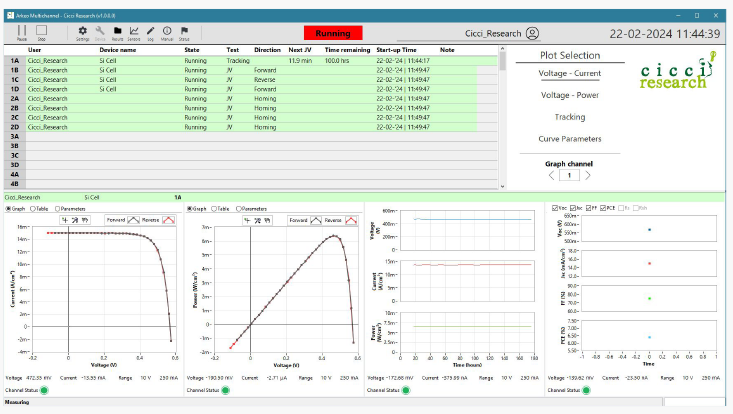

– Live JV and tracking visualization
– Multi-user
– Sample holder interface

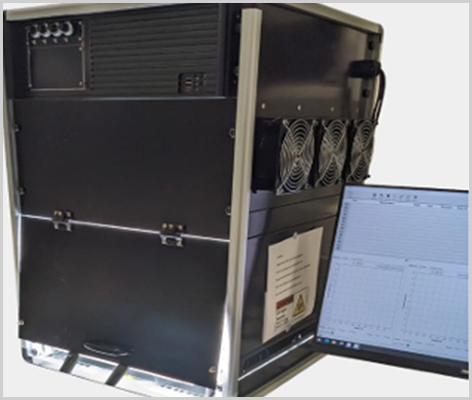

Arkeo Large Area Light Soaker
Available LEDs
| Line | Peak (nm) |
|---|---|
| UV | 365 |
| VIS | Visible |
| IR | 730 / 850 / 940 |
| FIR | 800 / 1050 |
Physical specifications
| Dimensions | 52.5 × 52.5 × 70 cm |
|---|---|
| Working area | 30 × 30 cm |
| Max Input Power | 1.3 kW |
| Weight | 50 kg |
| LED lines | 4 independent |
Irradiance specifications
| Specturm | |
|---|---|
| Range | 350 – 1100 nm |
| Class A¹ | < 15% of AM1.5G |
| Homogeneity | |
| Class A¹ | 10 cm radius (< 5%) |
| Class B¹ | 18 cm radius (< 10%) |
| Temporal Stability | |
| Class A¹ | < 2% after stabilization |
¹ ASTM E927-19 classification

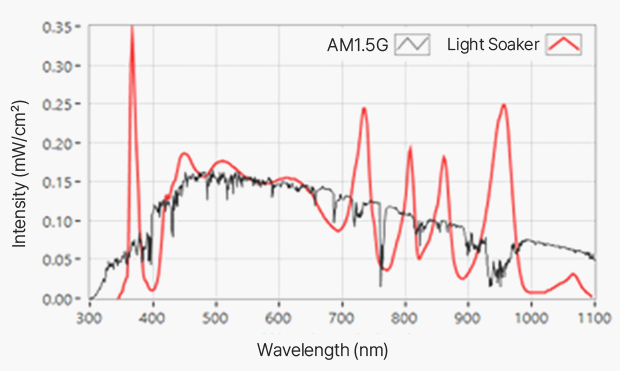

Irradiance Spectrum

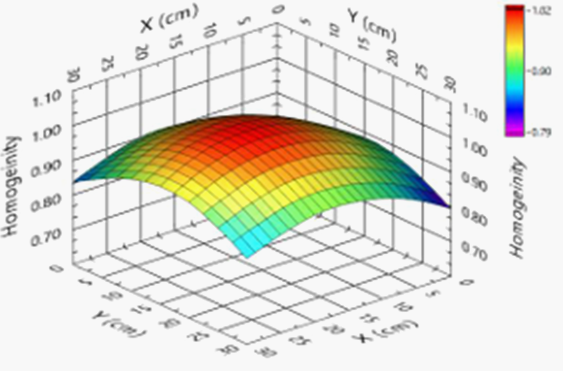

Relative Homogeneity Map

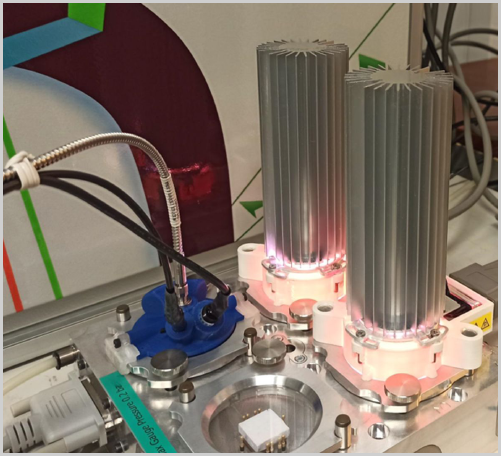

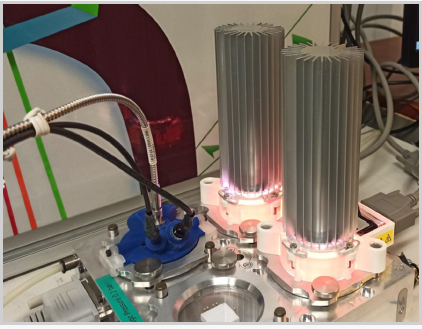

Arkeo compact MultiLED
Available LEDs
| Line | Peak (nm) |
|---|---|
| Warm White | - |
| Cool White | - |
| Far UV | 365 |
| UV | 385 |
| Blue | 455 |
| Green | 510 |
| Amber | 590 |
| Red | 625 |
| Hyper Red | 660 |
| Far Red | 730 |
| IR | 860 |
| Far IR | 940 |
Physical specifications
| Dimensions | 6 × 6 × 14 cm |
|---|---|
| Working area | 2 × 2 cm |
| Max Input Power | 20 W |
| Weight | 400 g |
| LED lines | 12 independent |
Irradiance specifications
| Specturm | |
|---|---|
| Range | 350 – 950 nm |
| Class A¹ | < 15% of AM1.5G |
| Homogeneity | |
| Variable | Depends on setup |
| Temporal Stability | |
| Class A¹ | < 2% after stabilization |
¹ ASTM E927-19 classification

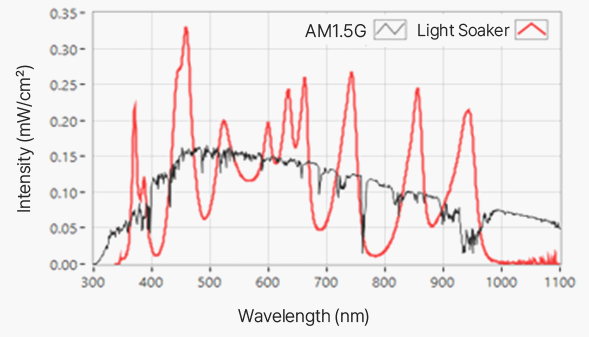

Irradiance Spectrum
Arkeo Environmental Chambers

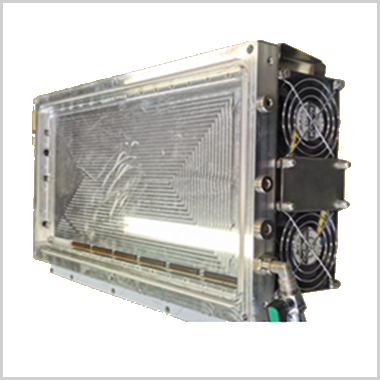

Chamber XXL
– Large 30 × 30 cm working area
– Overpressure valve
– Liquid cooling option
– Swappable custom sample holders

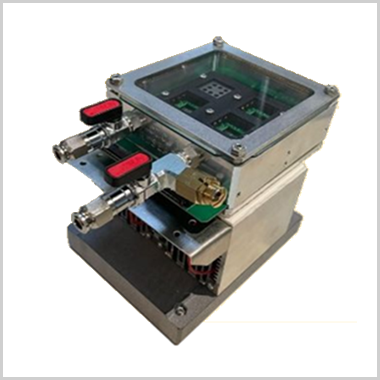

Chamber Medium
– Portable design
– Detachable chamber
– 9 × 9 cm working area
– Plug-and-play custom sample holders

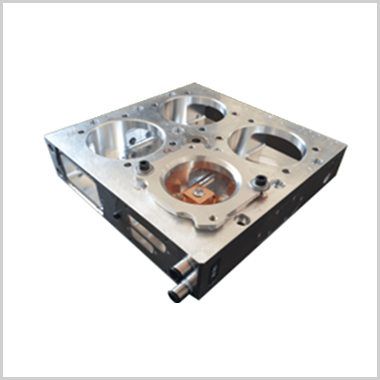

4-compartment
Irradiance specifications
| XXL | Medium | 4-compart. | |
|---|---|---|---|
| Height | 15cm | 15cm | 6cm |
| Width | 37cm | 12cm | 20cm |
| Depth | 15cm | 15cm | 20cm |
| Temperature control |  |
|
|
| Max pressure | 1.4bar | ||
| Tube connector | 6 mm outer diameter with quick connect | ||
| Cost | |||
